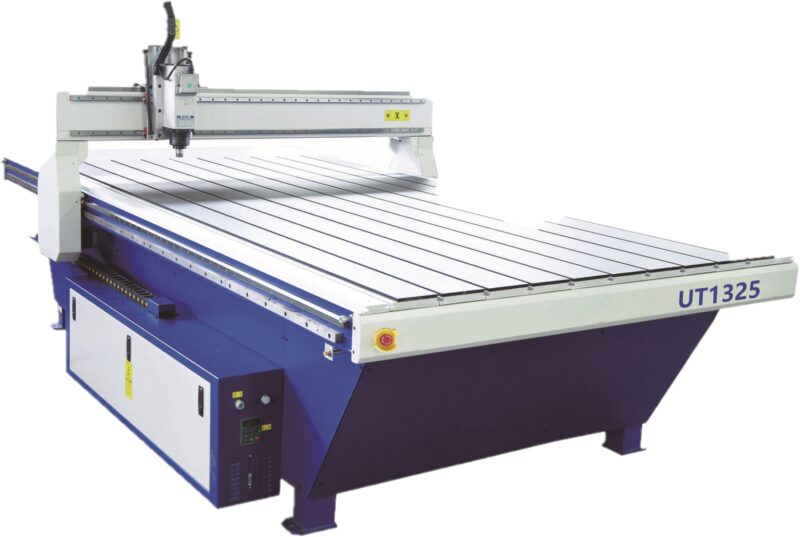

UNITEC-1325 CNC Router 5.6 kW Italy HSD Spindle
Applications and Materials:
- Woodworking Industry: Automotive Trim, Stereo Equipment, Instruments, Office Furniture, Closet, etc.,
- Sign Industry: Channel Letter, Mini Letter, signs, etc.,
- Crafts Industry: Solid wood, Aluminum Composite Panel, Bamboo, Soft metal, PVC, acrylic, Double Color Board, etc.,
Highlights:
- Integral welded frame, the mounting surface of Guide rail and rack processed by high-precision milling machine, ensure the machine running stability.
- Various table styles make convenient clamping and improve overall production efficiency.
- Efficiency, Smooth Bottom Surface, Clear Edge Contour, and Fine Processing Quality.
- Main configurations adopt imported accessories which will ensure the Overall Running Performance.
- Strict compliance with CE electrical standards for Circuit Design and Production, and all parts have safe and reliable Protection Devices.
Technical Specifications:
| WORKING SIZE: | 1300 x 2500MM |
| Z MAX STROKE | 150MM |
| SPINDLE: | 5.6kW (ELTE/COLOMBO/HSD) |
| SPINDLE SPEED: | 18000 RPM |
| TOOL DIAMETER | ER25 MAX 12.7MM |
| MOTOR | STEPPER MOTOR & DRIVER |
| MECHANICAL TRANS | X&Y Axis Rack, Z Axis Ball Screw |
| MAX TRAVEL SPEED | 15 M/MIN |
| CONTROLLER | NCSTUDIO |
| VOLTAGE | 380V 3PHASE |
| DIMENSION | 1500 x 3000MM |
