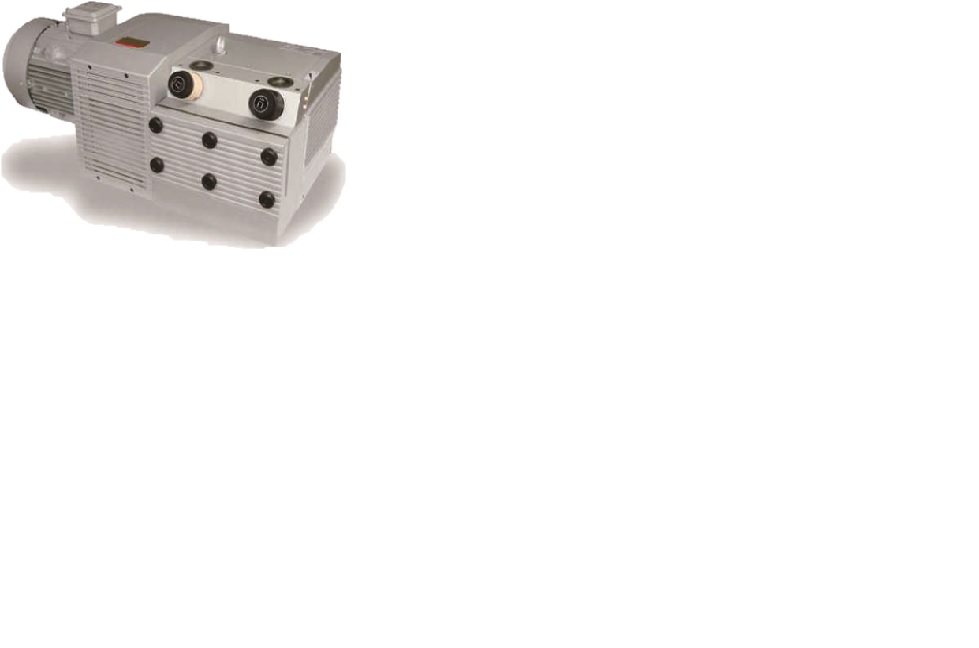

4.8kW Vacuum

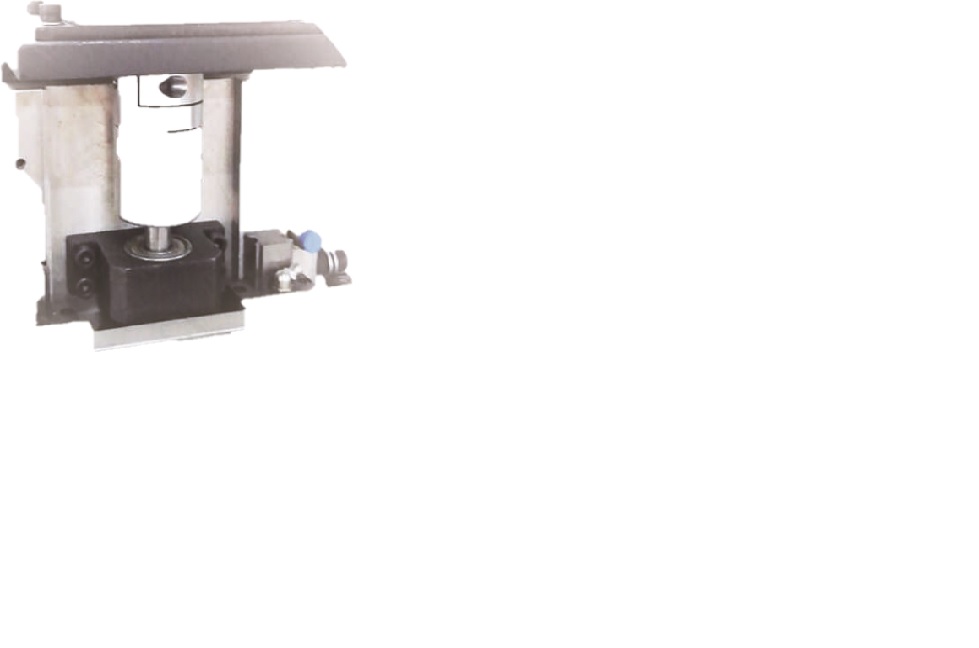

Z-AXIS COUPLING

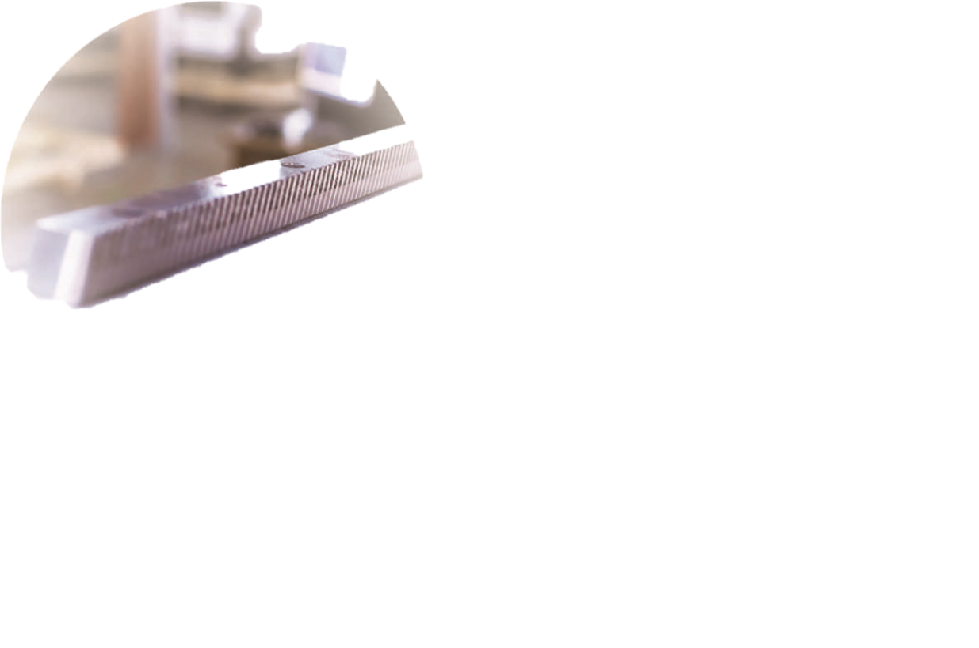

HELICAL RACK

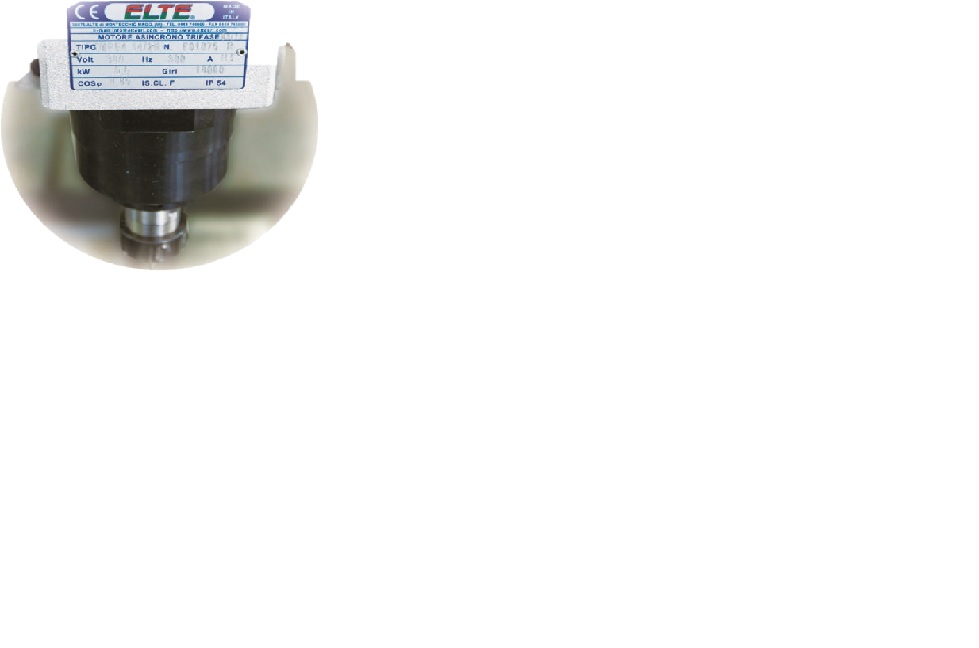

ITALIAN SPINDLE

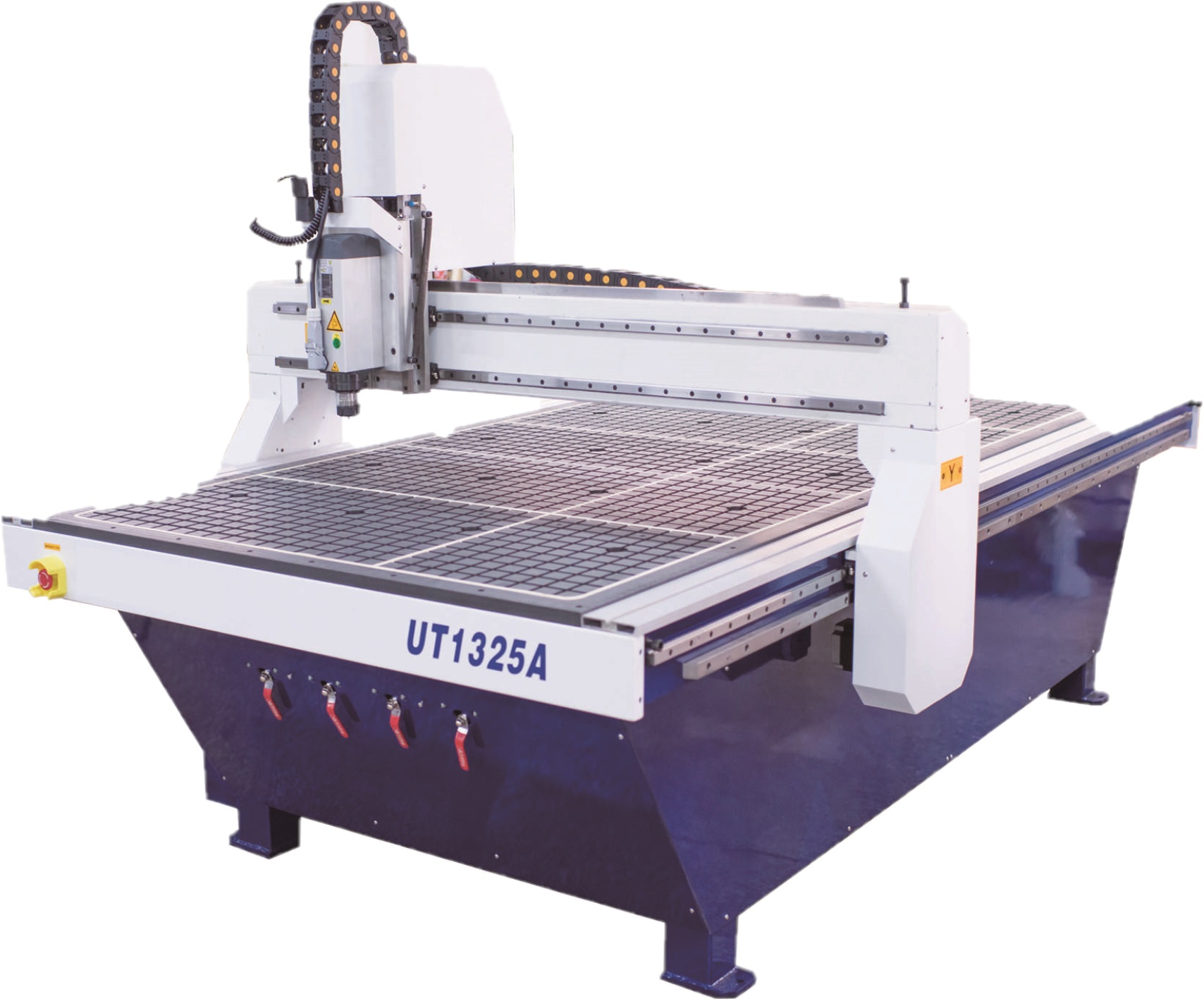

  1. UT1325A
  2. UT1325ACCESS
  3. UT1325ACCES
  4. UT1325ACCE
  5. UT1325 ACC

UNITEC-1325A CNC Router 5.6 kW Italy HSD Spindle with Vacuum Pump

د.إ71,500.00

UNITEC-1325A CNC Router 5.6 kW Italy HSD Spindle with Vacuum Pump

Application:

Such as Seal, Packing, Scutcheon and Pane Making, Decorating, Art and Craft, Architecture Model, Souvenir, Badge, Electric Circuitry, and Carpentry Field.

Suitable for Materials:

Engrave & cut on Acrylic sheet, ABS Double Color Sheet, PVC Foam Sheet, Wooden Sheet, PCB Aluminum, Brass, and Steel.

Durable Structure & the Aluminum table.

Cast Iron Lathe Bed, Aluminum with PVC working table, Stable running with less vibration.

Strong gantry design with Gantry Moving Type, Stable and Durable for a Long Time Usage.

Ensure High Positioning Accuracy.

Large Power Water Cooling Spindle 2.2kw which is applicable not only for Cooper plate, Aluminum plate, and Iron plate engraving but also for Woodworking. It can cut 20-30mm thickness acrylic by one-time cutting.

The Fine Engraving is Smooth and clear by the large power spindle.

Guide rail and transmission XYZ’s three axis are with linear square guide rail, Hiwin, Taiwan. Ball screws transmission for all axis. Durable running with Higher accuracy.

Dust-Proof Design for XZ -Axis, protect the guide rail and ball screws from the Dust & Dirt, and helps to ensure machine working performance.

 DELIVERY ALL OVER UAE
  ESTIMATED SHIPPING TIME: WITHIN 7 DAYS
 LOWEST PRICE POSSIBLE IN UAE

1 in stock

SKU: VR1325A Categories: , Tags: , , , , , ,

UNITEC-1325A CNC Router 5.6 kW Italy HSD Spindle with Vacuum Pump

Features:

  • This UNITEC-1325A machine is specially designed for Woodworking, Metal, and Signage Solutions industries. It has high precision, high speed and is cost-effective.
  • By seamless welding and vibrating treatment, the Lathe Bed Steel structure is firm, durable, and non-deformable.
  • Computer cabinets and the Weihong control system make the machine highly stable and reliable.
  • Using an Automatic Lubrication System, it’s convenient to conduct its maintenance.
  • Additional functions include power-off restoration, continuation on break point, working time anticipation, etc.

Highlights:

  • Integral welded frame, the mounting surface of the guide rail, and rack processed by high-precision milling machine ensure the machine’s operational stability.
  • Various table styles make clamping of materials and improve overall production efficiency.
  • Efficiency, Smooth Bottom Surface, Clear Edge Contour, and Fine Processing Quality.
  • Main configurations adopt imported accessories which will ensure the Overall Running Performance.
  • Strict compliance with CE electrical standards for Circuit Design and Production, and all parts have safe and reliable Protection Devices.

Technical Specifications:

WORKING SIZE: 1300 x 2500MM
Z MAX STROKE 150MM
SPINDLE: 5.6kW (ELTE/COLOMBO/HSD)
SPINDLE SPEED: 18000 RPM
TOOL DIAMETER ER25 MAX 12.7MM
MOTOR STEPPER MOTOR & DRIVER
MECHANICAL TRANS X&Y Axis Rack, Z Axis Ball Screw
MAX TRAVEL SPEED 15 M/MIN
CONTROLLER NCSTUDIO
VOLTAGE 380V 3PHASE
DIMENSION 1500 x 3000MM
